SuperHD 1296P video recording
Support HDR/WDR with excellent night video quality
2.7 inch LCD display
Top-end chipset Ambarella A7+OV4689 sensor
GPS tracking/loggering/G-Sensor(Optional)
Speed camera alert function(Optional)
ADAS functions:LDWS, FCWS, FCMD, LLWS(Optional)
Support TF card max 256GB
Ambarella A7 (High-end & Patent design)
1. Product Spec

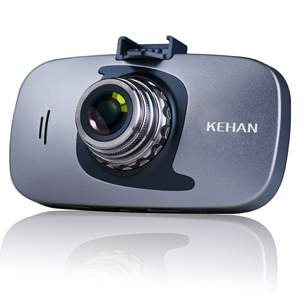

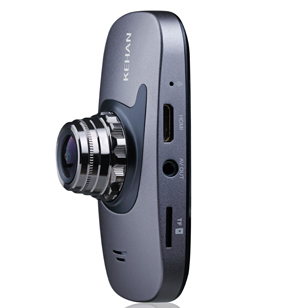

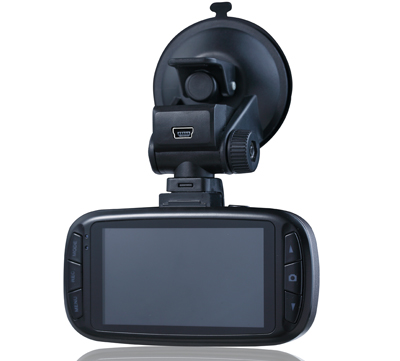

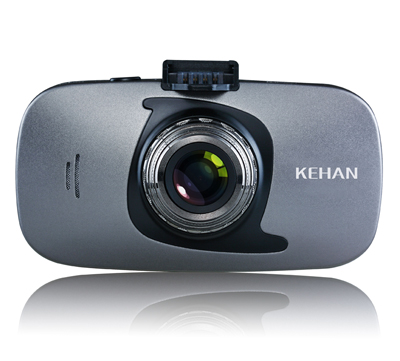

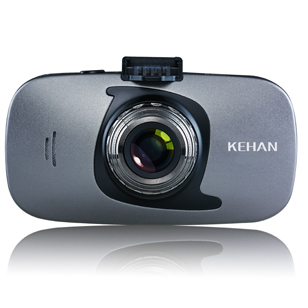

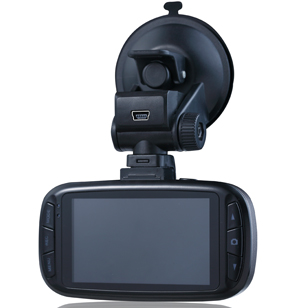

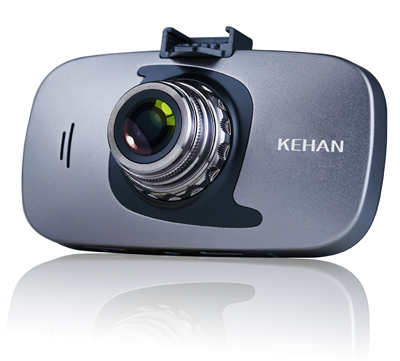

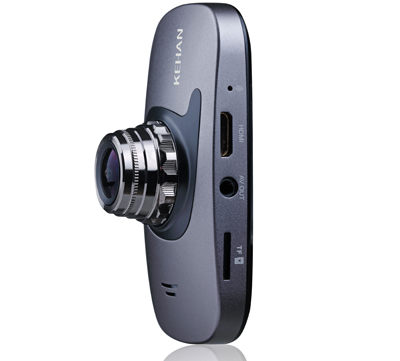

3. Picture
Technical Specification
Chipset |
Ambarella A7 |
LCD Display |
2.7" |
Video resolution |
2560x1080 30P 21:9, 2304x1296 30P 16:9, 1920x1080 30P 16:9, HDR 1920x1080 30P 16:9, 1280x720 60P 16:9, 1280x720 30P 16:9, HDR 1280x720 30P 16:9, 1920x1080 45P 16:9 |
Decoding Format |
H.264 |
Video format |
MP4 |
Photo resolution |
13M(4800x2700 16:9), 9M(4000x2250 16:9), 4M(2688x1512 16:9) |
Photo format |
JPEG |
USB Interface |
USB 2.0 |
Car charger Parameter |
Output Voltage: +5V Output current: 1.5A Input Voltage: 12V-24V |
SD Card |
TF card (Above Class 10, max support 128G) |
Mic/Speaker |
Built-in |
Light Frequency |
50Hz/60Hz |
Battery |
Built-in rechargeable Lithium-ion battery |
Work temperature |
0℃~65℃ |
Storage temperature |
-20℃~70℃ |
PC system required |
Windows 7/Windows 8 /Windows 10 /MAC OS x 10.3.6 or above |
GPS / Speed Cam |
Optional |
