1. Product Spec

• Radar Detector
  Induction Radar Frequency:
  X band: 10.525GHz, ±100m
  K band: 23.3 to 24.4GHz
  Ka band: 33.3 to 36.1GHz
  Laser: 904 NM
  CT band(Iskra and strelka) 24.150+-0.1GHZ
  Receiving way: Double Layer
  Super heterodyne two-circuit system
•  Ambarella A7LA50+OV4689
•  2.7 inch high definition screen
•  Lens structure: 6 layers glass + 1 IR filter Lens
• Video Resolutions:SuperHD1296P/1080P HDR.
•  GPS tracking and loggering/G-Sensor
• Auto Record/Motion detection/Loop Recording;
• Support TF card up to 128GB

• With 2.7 inch high definition LCD display;
• Support max SHD 1296P(2304*1296) video recording;
• Support auto recording when car is switched on and auto power off when car is switched off;
• GPS tracking & Logging to record driving speed and driving route;
• Anti-radar detector to detect and alert police radar;
• Inbuilt GPS fixed speed camera data to alert speed limit;
• With Seamless and loop recording, automatically cover old files when memory card is full;
• With 4 mega pixels CMOS sensor to offer good image under low light;
• With 6 glass layers lens for stable image quality;

• With Dewarpping function as image distortion correction, even the image is under wide screen, it still won’t be distorted;
• With G-Sensor at different sensitivities selection to detect any collision or sudden brake during driving and save these video files protected;
• With Driver ID Setting function, could input license plate number into device to create your own style;
• Support max 256GB Class 10 or above TF card; (memory card not included, highly suggested Samsung/Toshiba with high writing speed)
• Recorded videos could be playback on the device, computer and television;
• Support 1 key emergency recording and mute recording;
• With power and GPS connector holder, power cord can connect directly from holder and with internal GPS module inside the holder.

Remarks: In order to get the most updated fixed speed camera data, please update firmware frequently.

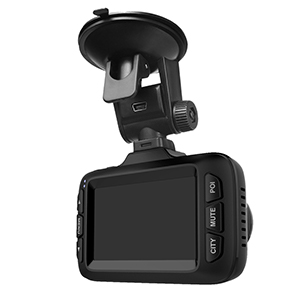

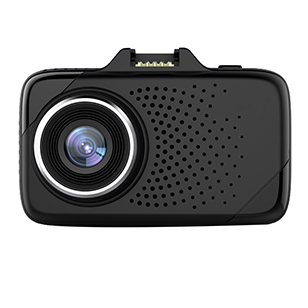

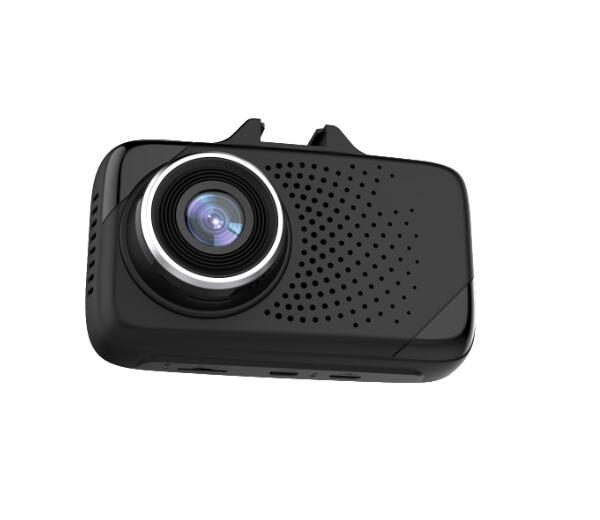

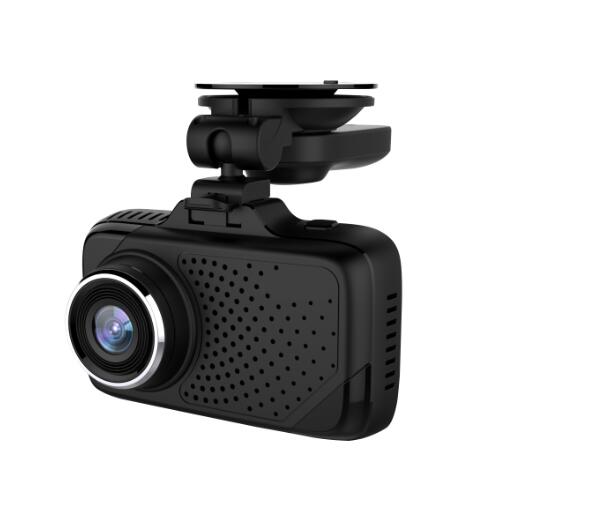

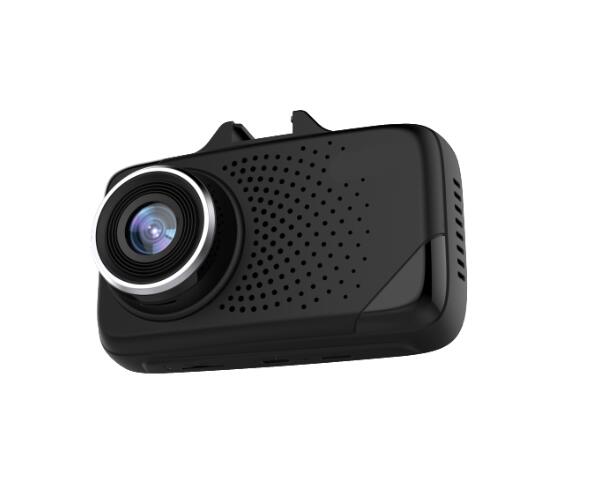

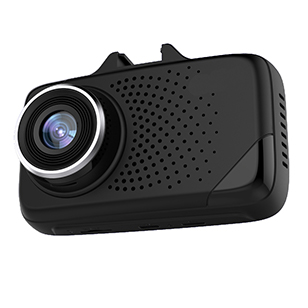

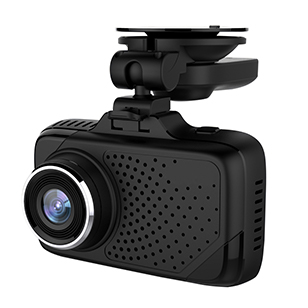

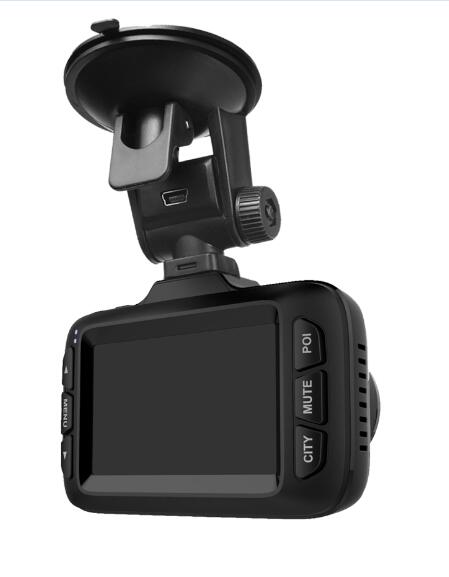

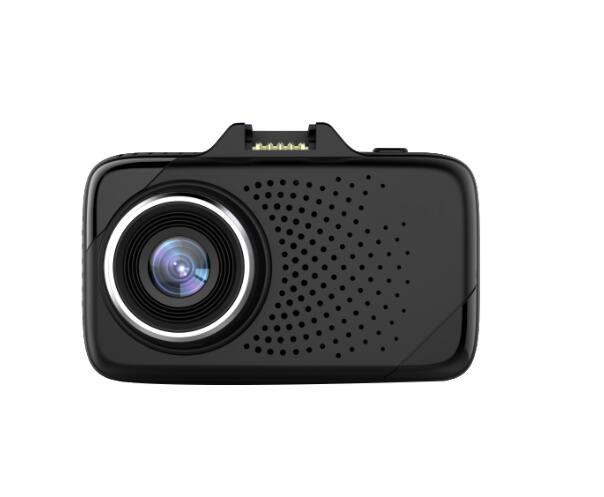

3. Picture
