Ambarella A7LA50 Chipset+Omnivision OV4689 Sensor
3.0 inch high definition screen
Radar detector for X, K, Ka, Laser, CT band
Video Resolutions:SuperHD1296P/1080P HDR
GPS tracking and loggering/G-Sensor
Auto Record
Motion detection
Loop Recording
Support TF card up to 128GBCombo 3 IN 1: Ambarella A7LA50 Car DVR+ Radar Detector+GPS Speed cam Data
1. Product Spec
Radar Detector
Input Voltage: DC12V
Induction Radar Frequency:
X band: 10.525GHz, ±100m
K band: 23.3 to 24.4GHz
Ka band: 33.3 to 36.1GHz
Laser: 904 NM
CT band(Iskra and strelka) 24.150+-0.1GHZ
Receiving way: Double Layer
Super heterodyne two-circuit system
With Police Cam Data to warn fixed cameras,special only for Russia.
Ambarella A7LA50 Car DVR.
• 3.0 inch high definition screen
• Omnivision OV4689 1/3-inch CMOS Digital Image Sensor
• Lens structure: 6 layers glass + 1 IR filter Lens
• Video Resolutions:HDR 1920*1080 30 fps,2560*1080 30 fps,2304*1296 30 fps,1920*1080 45 fps,1920*1080 30 fps,1280*720 60 fps
• GPS tracking and loggering
• G-Sensor
• Auto Record
• Motion Detection
• Loop Recording
• Support TF card up to 128GB
2. Features

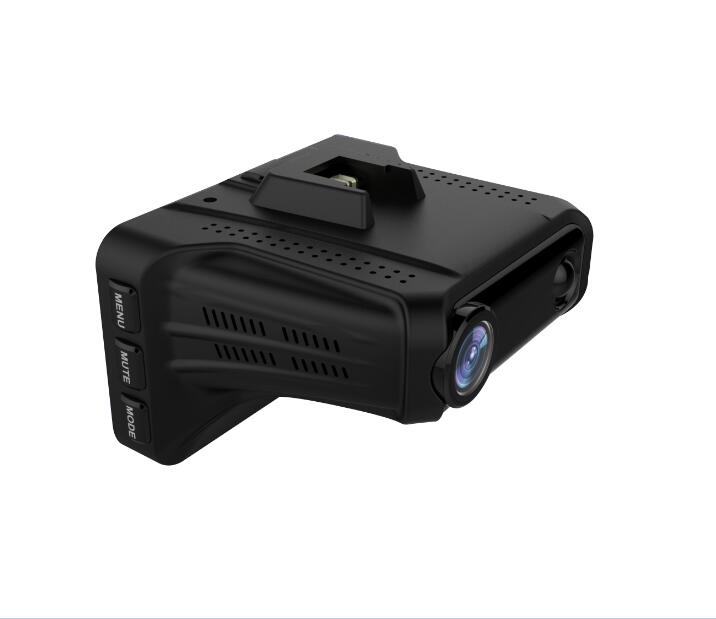

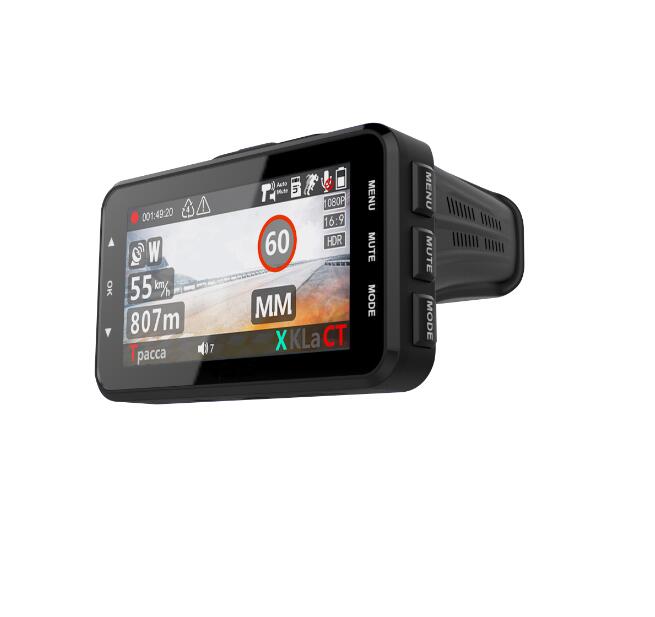

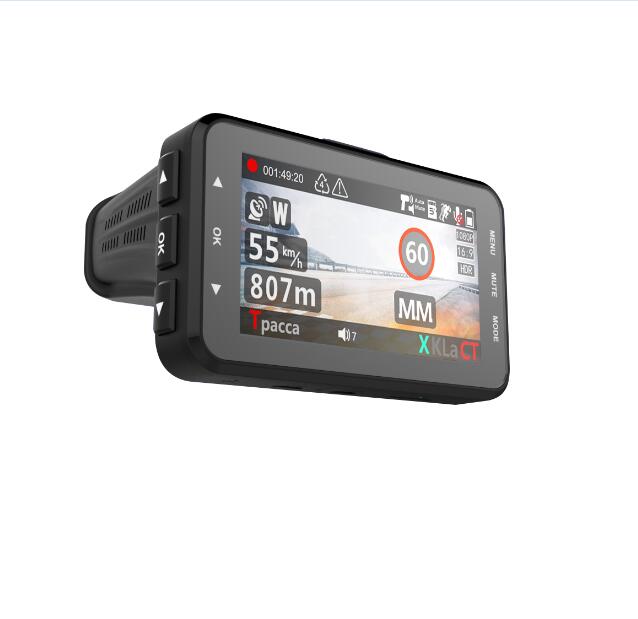

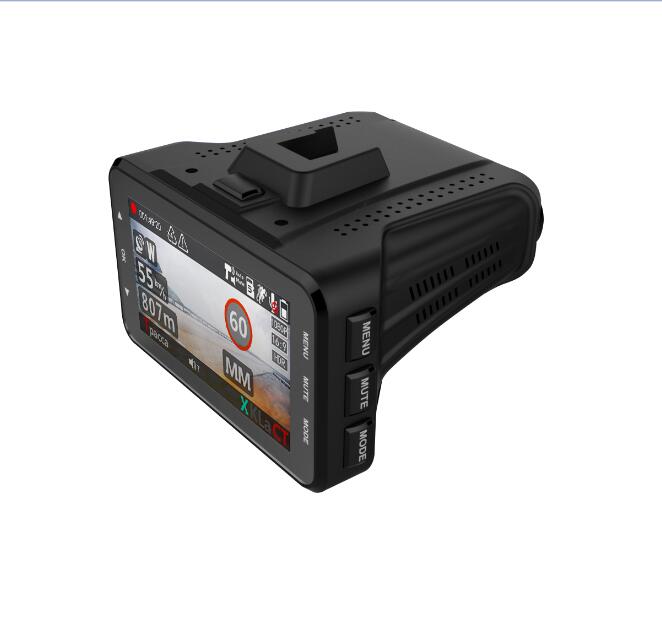

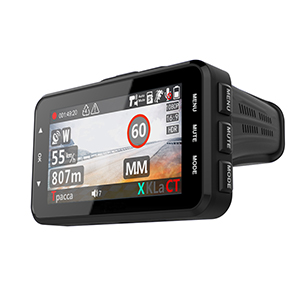

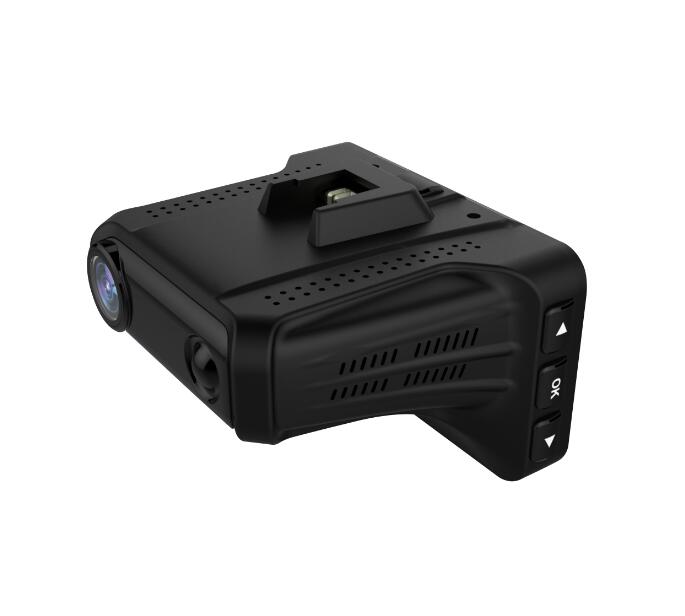

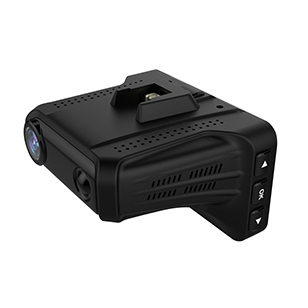

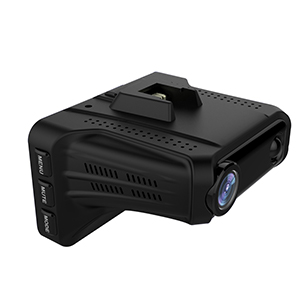

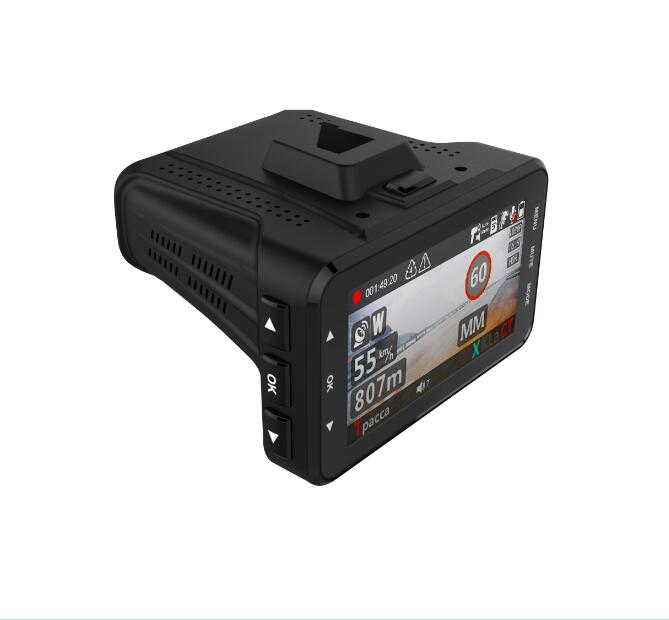

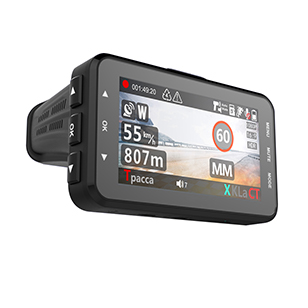

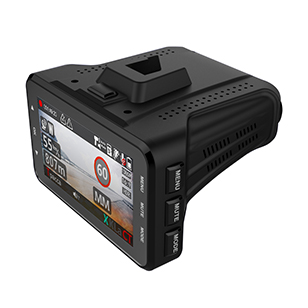

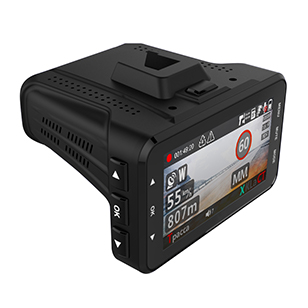

3. Picture
Technical Specification
Chipset |
Ambarella High-end A7 Chipset |
Screen |
3.0" |
Video Resolution |
2560x1080 30P 21:9, 2304x1296 30P 16:9, 1920x1080 30P 16:9, HDR 1920x1080 30P 16:9, 1280x720 60P 16:9, 1280x720 30P 16:9, HDR 1280x720 30P 16:9, 1920x1080 45P 16:9 |
Decoding Format |
H.264 |
Video Format |
MP4 |
Photo Resolution |
1920x1080, 1280x720 |
Photo Format |
JPEG |
Data Connector |
USB 2.0 |
Car Charger |
Voltage Output:+5V Current Output:1.5A Voltage Input:12V-30V |
Storage Card |
(Class 10 or above,up to 128G) |
Microphone/Loudspeaker |
Built-in |
Light Frequency |
50Hz/60Hz |
TV Out |
NTSC/PAL |
USB Interface |
USB2.0 |
Battery |
Li-polymer battery |
Working Temperature |
0℃~65℃ |
Storage Temperature |
-20℃~70℃ |
System Requirement |
Windows XP / Vista / Windows 7/Windows 8 /Windows 10 /MAC OS x 10.3.6 or above |
