SuperHD 1296P video recording
Support HDR/WDR with excellent night video quality
2.7 inch LCD display
Top-end chipset Ambarella A7+OV4689 sensor
GPS tracking/loggering/G-Sensor(Optional)
Speed camera alert function(Optional)
ADAS functions:LDWS, FCWS, FCMD, LLWS(Optional)
Support TF card max 256GB
Ambarella A7 (High-end & Patent design)
1. Product Spec
3. Picture

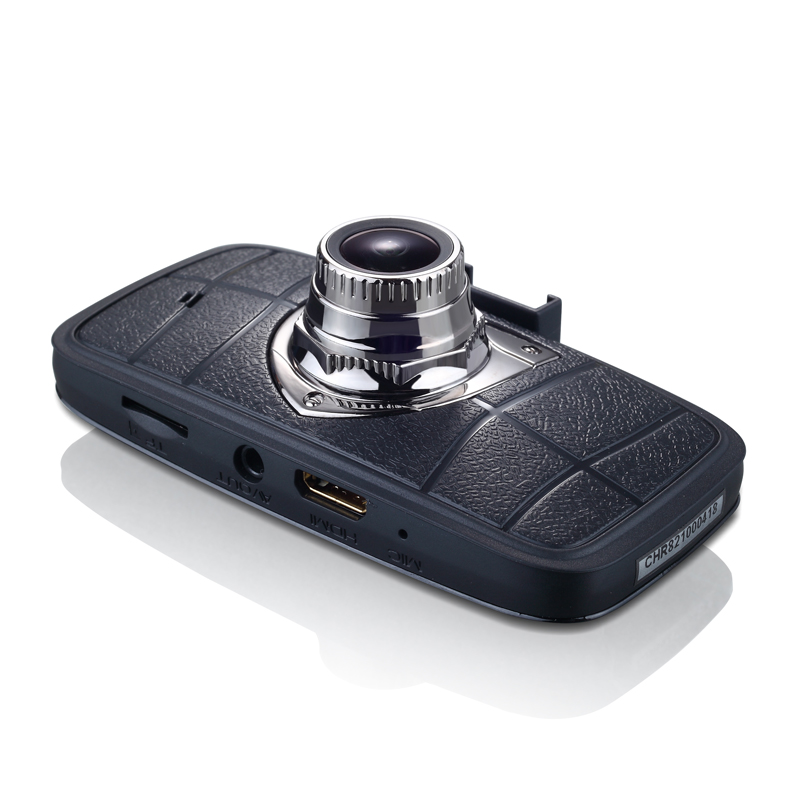

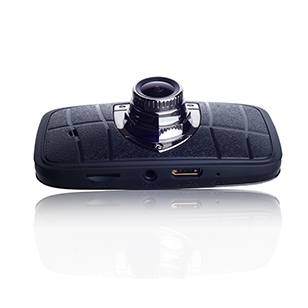

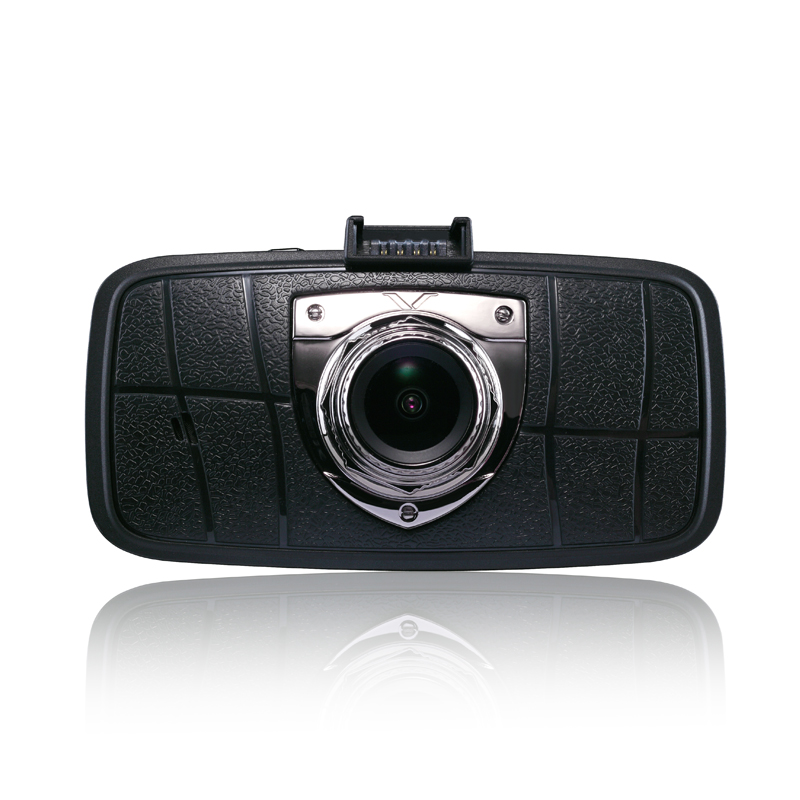

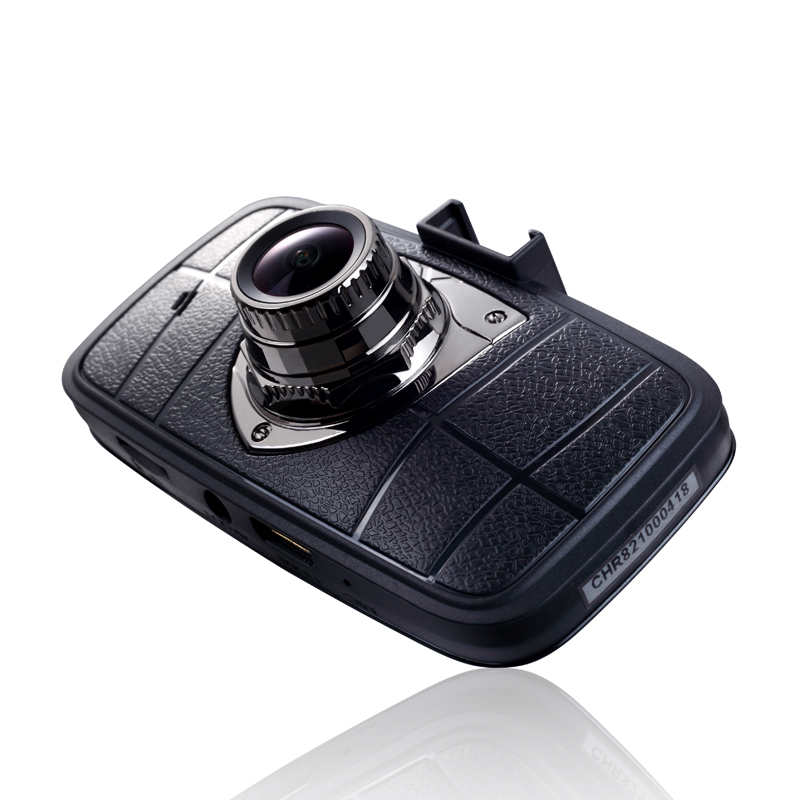

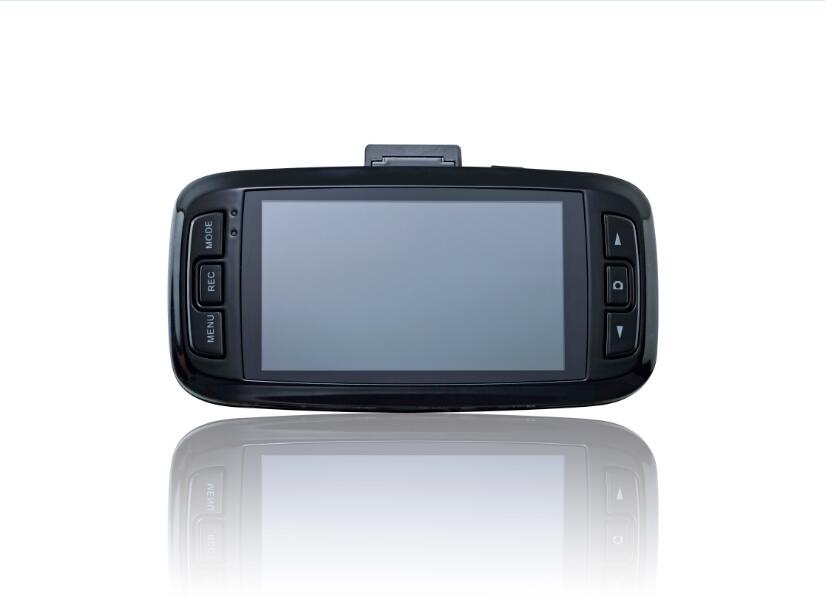

ESR821 Plastic case:

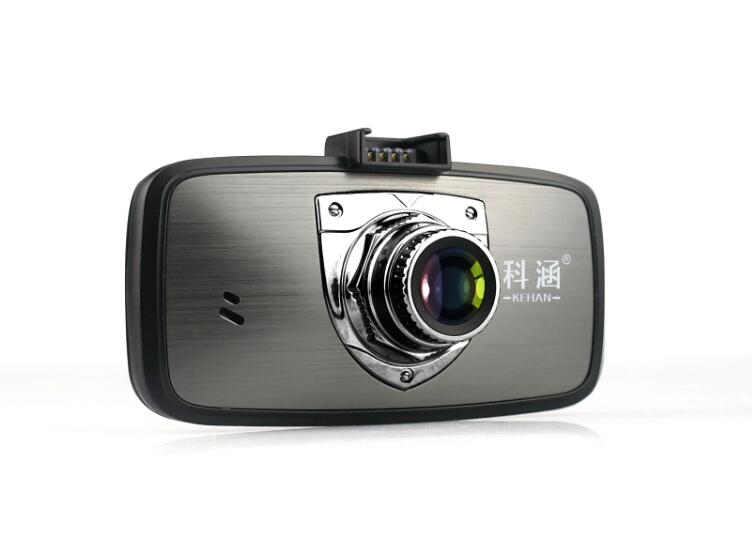

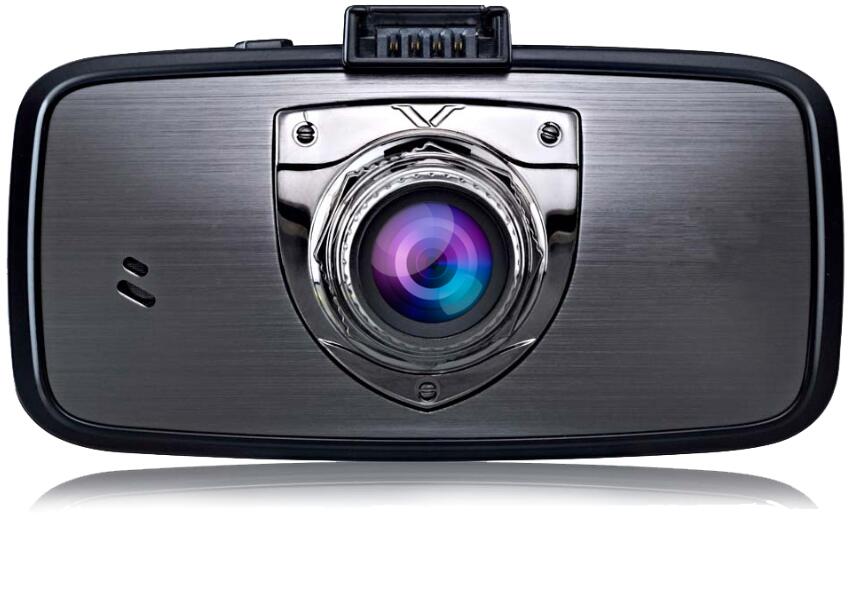

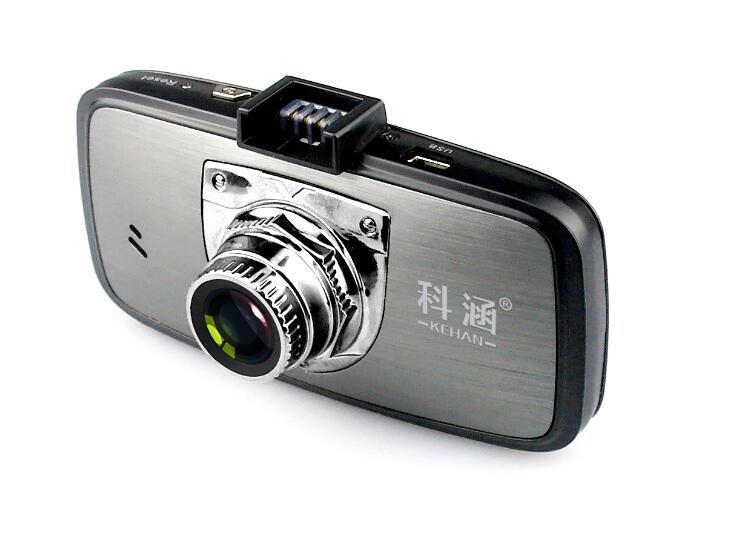

ESR821 Metal case:
HDR 1080P has stronger performance than ordinary 1080P, it can strengthen the visibility of the part in darkness, reduce overexposure under strong light condition, balance the strong & weak light range. Also High-quality camera lens gives excellent video quality at both day and night.

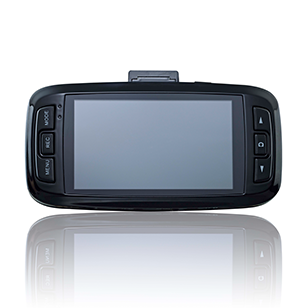

Extra large and bright 2.7" LCD screen for real-time view and playback, making it easier to gather reliable evidence anytime.
Records in wide 170° viewing angle to capture every detail. It provides an extensive road overview and prevents image distortion.
G-Sensor senses sudden acceleration, braking and collisions in order to automatically capture and protect critical footage surrounding an accident. Through this function the important files won’t be removed by loop recording.
CPU | Chipset | Ambarella A7LA50 |
Sensor | OV4689 | |
LCD screen | 2.7 TFT | |
Functions | OSD language | customizable |
Mic | Yes | |
Speaker | Yes | |
WDR | Yes | |
HDR | Yes | |
LDWS | Yes | |
FCWS | Yes | |
GPS Logger | Optional | |
G-sensor | Optional | |
Camera | Image Resolution | 4M |
Image Format | JPEG | |
Video | Video resolution | HDR 1920*1080 30fps |
2560*1080 30fps | ||
2304*1296 30fps | ||
1920*1080 45fps | ||
1920*1080 30fps | ||
1280*720 60fps | ||
Video format | MOV | |
Codec | H.264 | |
Videw angle | 170 degrees(Diagonal) | |
Loop recording | Yes | |
Device | Button | 7 buttons |

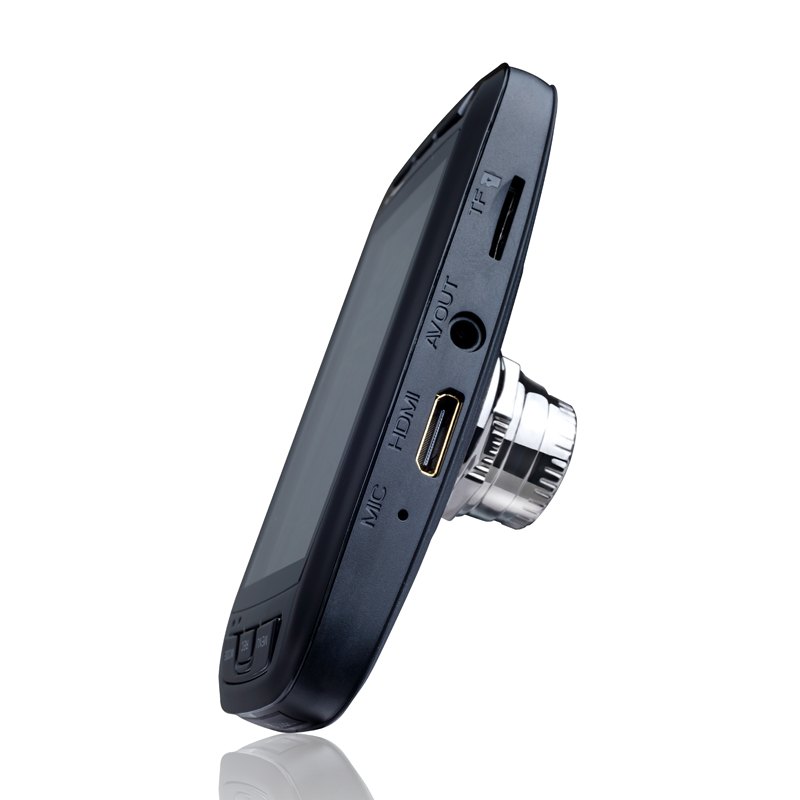

Interface | AV, HDMI, USB, Charging connector on holder | |
Card | micro SD | |
Size (mm) | Around 97.15*53.1*33.3mm | |
Weight(g) | Around 66.5g | |
Accessories | Power adaptor | Yes |
Battery | Built-in battery, 240mAh | |
USB cable | Yes | |
AV cable | Yes | |
Software | OS | Windows 2000/XP/Vista/Windows 7. MAC OS x 10.3.6 above |
Driver | Free driver |
