ERD326

Ambarella A7LA50 Chipset+Omnivision OV4689 Sensor

2.4 inch high definition screen

Radar detector for X, K, Ka, Laser, CT band

GPS Speed cam for Strelka, Avtodoria, etc

Video Resolutions:SuperHD1296P/1080P HDR

GPS tracking and loggering/G-Sensor

Auto Record

Motion detection

Loop Recording

Support TF card up to 128GB



DetailSpecification formPacking info


Combo 3 IN 1: Ambarella A7LA50 Car DVR+ Radar Detector+Police Cam Data


1. Product Spec


•Radar Detector
•Input Voltage: DC12V
•Induction Radar Frequency:

   X band: 10.525GHz, ±100m
   K band: 23.3 to 24.4GHz
   Ka band: 33.3 to 36.1GHz
   Laser: 904 NM
•CT band(Iskra and strelka) 24.150+-0.1GHZ
•Receiving way: Double Layer
•Super heterodyne two-circuit system

•With Police Cam Data to warn fixed cameras,special only for Russia.

Ambarella A7LA50 Car DVR.
• 2.4 inch high definition screen
• Omnivision OV4689 1/3-inch CMOS Digital Image Sensor
• Lens structure: 6 layers glass + 1 IR filter Lens
• Video Resolutions:HDR 1920*1080 30 fps,2560*1080 30 fps,2304*1296 30 fps,1920*1080 45 fps,1920*1080 30 fps,1280*720 60 fps
• GPS tracking and loggering
• G-Sensor
• Auto Record
• Motion Detection
• Loop Recording
• Support TF card up to 128GB


2. Features

  •  Light and compact, easy to install, not cover the driving sight and affect the interior appearance;
  • High Definition TFT digital display;
  • Support 1080P HD resolution recording, playback videos smoothly;
  • Seamless recording, won’t miss any data;
  • With 4MP low noise full glass super wide angle lens;
  • With Dewarping function as image distortion correction, even the image is under wide screen, it still won’t be distorted;
  • G-Sensor, could set different sensitivities;
  • When the device is on and detects any collision or hit, it will start emergency recording automatically;
  • DriverID Setting function, could input license plate number into device to create your own style;
  • Support high capacity TF card and loop recording, could set up different video durations. When the TF card is full, the new video file will recover the oldest one automatically to keep recording all the time;
  • Recorded videos could be browsed on the device, computer and television;
  • Support 1 key to emergency recording and no sound recording;
  • GPS positioning;
  • With GPS Radar Data and Radar Detector;
  • After connecting car charger and starting up the car, the device turns on automatically without pressing the power button.

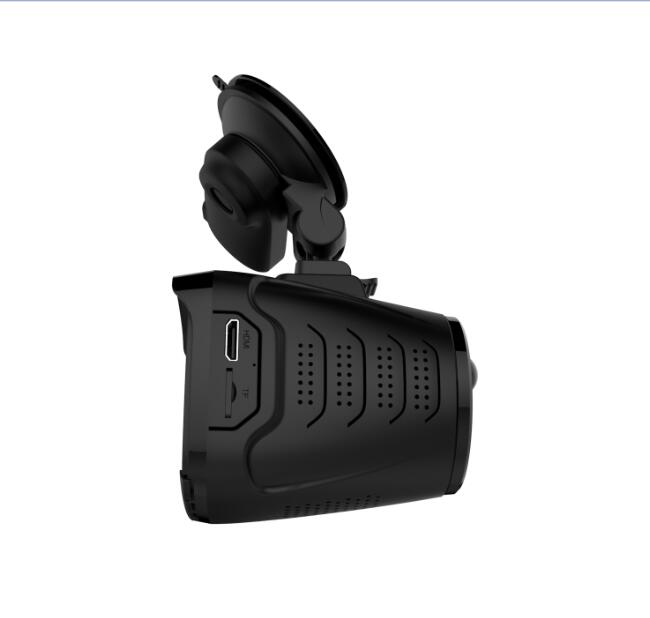

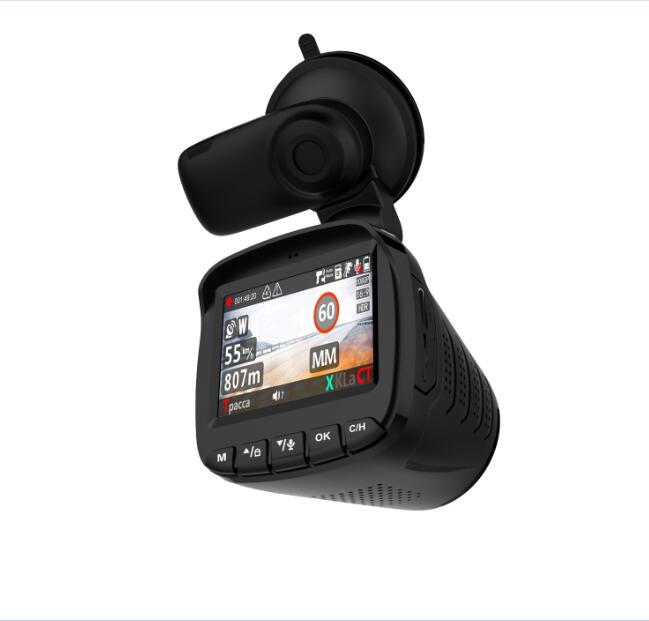

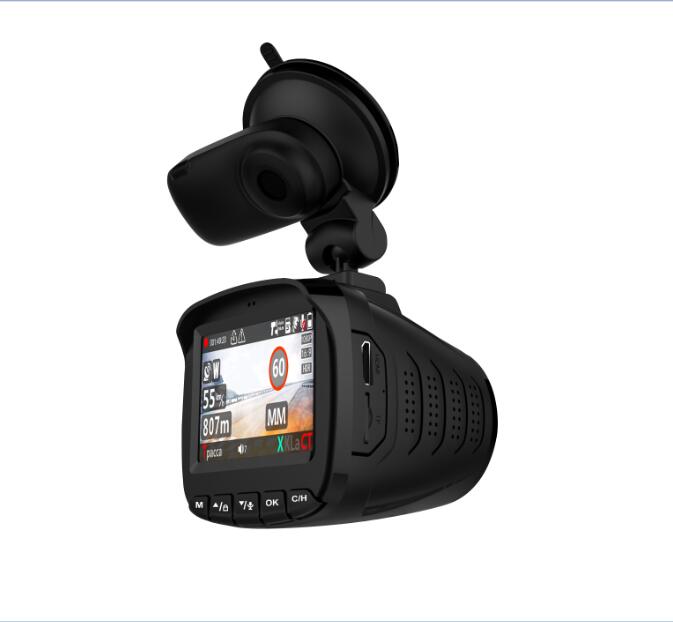

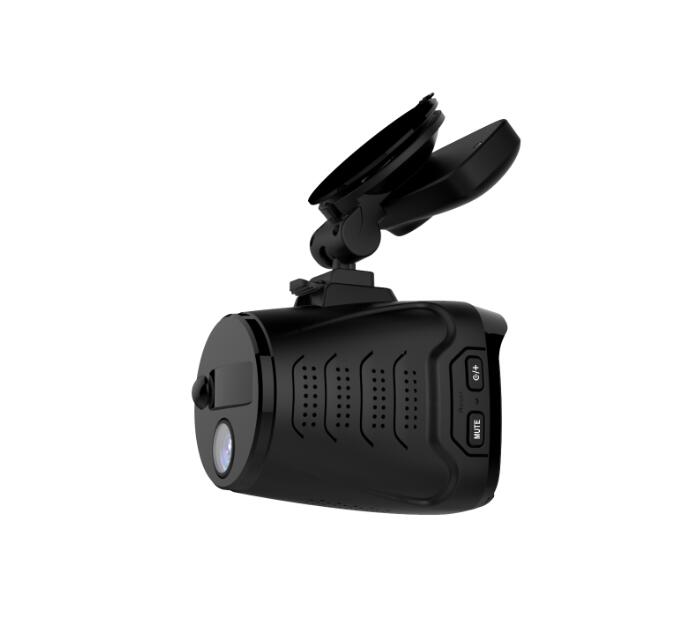

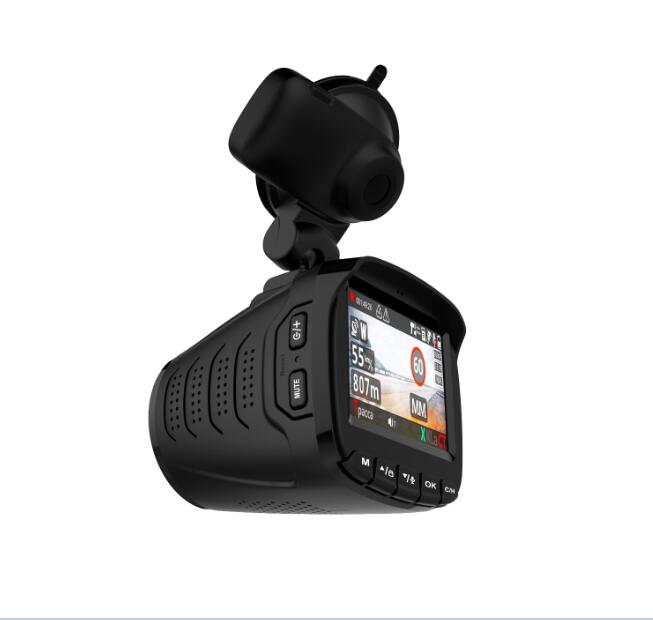

3. Picture


• 2.4 inch high definition screen Dashcam;

• Omnivision OV4689 1/3-inch 4 mega pixels CMOS Digital Image Sensor;
• Lens structure: 6 layers glass + 1 IR filter Lens;
• Video Recording Resolutions:
HDR 1920*1080 30 fps,2560*1080 30 fps,2304*1296 30 fps,1920*1080 45 fps,1920*1080 30 fps,1280*720 60 fps;
• GPS tracking and loggering;
• G-Sensor;
• Auto Record;
• Motion Detection;
• Loop Recording;
• Support TF card up to 128GB;

• Radar detector for X, K, Ka, Laser, CT band;

• Speed cam for Strelka, Avtodoria, etc;
