Sensor: AR0330
FHD 1080P@30fps video recording,with WDR good night video quality
2.4 inch LCD display
• Chipset: NTK96650
• Sensor: AR0330
• FHD 1080P@30fps video recording,with WDR good night video quality
• 2.4 inch LCD display

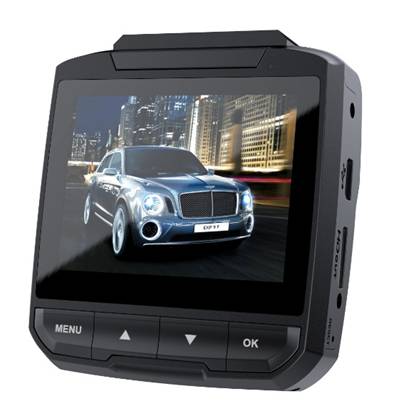

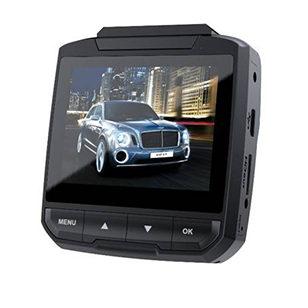

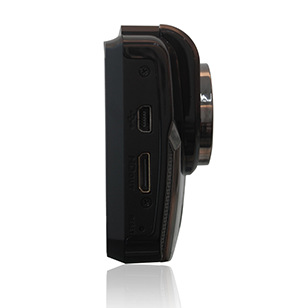

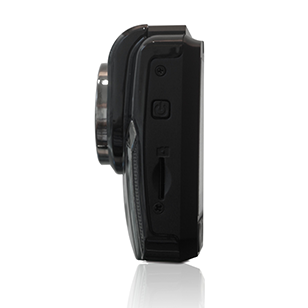

| Model No. | ESR237 |
| Chipset | NTK96655 |
| Sensor | AR0330 |
| Camera | 3.0M pixels |
| Lens | 170° wide angle |
| F/NO | 2.3 |
| EFL | 3.5 |
| Aperture |
|
| Lens glass |
|
| LCD display | 2.31“ TFT LCD |
| Memory Card | Support up to 64GB |
| Motion Detection | YES |
| G-sensor | yes |
| GPS | NO |
| WiFi | NO |
| LDWS | NO |
| FCWS | NO |
| WDR | YES |
| HDR | NO |
| Parking mode | NO |
| Loop Recording | 1/3/5/MinS |
|
EMI prevent (无线电干扰措施) |
NO |
| Video resolution |
1080FHD
1920x1080 720P 1280x720 WVGA848x480 VGA640X480 |
| Video format | AVI |
| Video codec | MJPEG |
| Image resolution |
12M4032x3024,10M3648x2736， 8M3264x2448, 5M2592x1944, 3M2048x1536, 2MHD1920x1080,VGA640x480, 1.2M1280x960 |
| Image format | JPG |
| TV out | PAL/NTSC |
| Microphone | Built-in |
| Speaker | 8Ω,1W,18*10*3.5mm,线长50mm, |
| Battery | 200mAh,3.7V |
| Car charger | Output 5V 1A (Input 12-24) |
| Weight | 65g |
| Accessories | Car holder, Car charger, USB cable |
