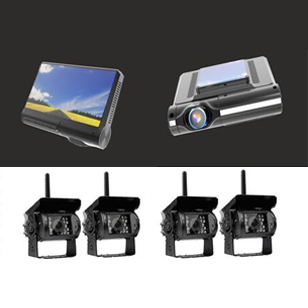

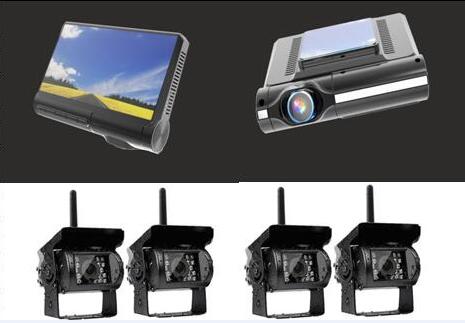

5-channel: 1 channel 1080P Local Recorder+4 channel VGA;
2-channel:1 channel 1080P Local Recorder+1 channel 720P Wireless Recorder;
Model number: ESR505

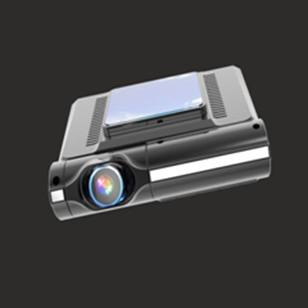

★5-channel car dash cam

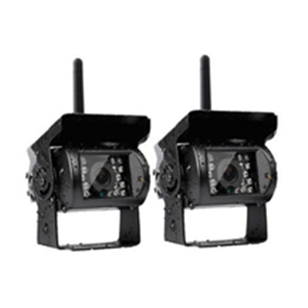

★ Rear camera just need to connect with the power ,no need to connect the main device;
★ Video recorded by vice camera can be uploaded to device storage via WIFI.
| Features: | |
| ★ Support 1 channel 1080P Local Recorder & 4 channel VGA | |
| or 1 channel 720P Wireless Recorder; | |
| ★ Auto Record When Vehicle Start , and Support Automatic |
|
| Shutdown Config in Flameout Delay Menu; |
|
| ★ Built-in Collision Sensor, Real-time Three-axis 3D Vehicle |
|
| Collision State Detection; |
|
| ★ Start Abrupt Collision Record When Abnormal Situation |
|
| Happens (this file will not be overwritten); |
|
| ★ Support Loop Record ; |
|
| ★ License Plate Imprint Function ; |
|
| ★ Support Manual Shutdown or Open Record Function ; |
|
| ★ Support Multi-language : Simplified Chinese,English,France, |
|
| Russia,Germany and Italy ; |
|
| ★ H.264 Compression Method to Extend Capacity of TF Card ; |
|
| ★ Auto Save Video Mute Function ; |
|
| ★ Video Play Back at Any Time ; |
|
| ★ No Deformation HD Video Record , Clear and No Smear Image ; |
|
| ★ Overpressure and Overcurrent Protection . |
|
| Specification | |
| Lens: | HD 120°-160° Wide Angle Lens |
| Video Effective pixels: | HD1080P |
| Photo Effective pixels: | SONY IMX323 2M |
| Video Format: | H.264 MOV |
| Photo Format: | JPEG |
| Main Camera Frame Rate： | H.264@1080P(1440*1080) 30fp/s |
| Rear Wireless Camera Sensor*4： | (640*480 VGA Sensor+4G Lens)*4 |
| Rear Camera Video Resolution： | VGA |
| G Sensors: | Three - axis 3D Collision Detection |
| Record Mode: | H.264 MOV ,Loop Record |
| Video Intermittent: | 0ms |
| Memory: | TF Card 1GB～32GB |

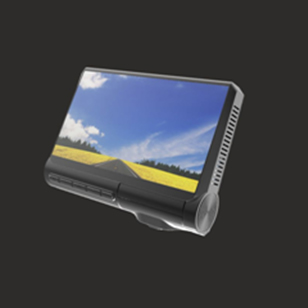

| Display Screen: | 5" 16：9 IPS HD Screen(854X480) |
| Video Output: | AV OUT |
| Start Time: | 1S |
| Operation Voltage: | 12V--36V DC |
| PCCAM | NO |
| USB Transfer | NO |
| Main Camera Video Resolution: | 1080P=1920*1080 / 720P=1280*720 /… |
| Main Camera Photo Resolution : | 2048*1536 |
| Work Current: | 580mA(Typical Values） |
| Quiescent Current: | 20uA |
| Storage Temperature (℃): | （-20℃-70℃） |
| Operation Temperature (℃): | （0℃-60℃） |
| Operation Humidity (RH): | 15%-60%RH |
| Battery Type: | NO |
