ESR821 (2-CH）
2-CH with Full HD 1080P 30FPS Ambarella A7LA70 chipset SONY IMX322 Image Sensor 2.7 Inch Large Clear Screen Super Wide Angle View Dual Camera Car DVR Car Black Box Dash Cam Vehicle Driving Recorder

DetailSpecification formPacking info

Features:
• 2.7 inch high definition screen;
• 3.0MP CMOS image sensor: Sony IMX322(Both channels);
• Ambarella A7LA70
• Videos resolution:
1920*1080 30fps / 1280*720 30fps(Both channels);
• 120 degree wide angle in both front & back view
• With WDR: Wide Dynamic Range
• With Motion Detection
• Video compression format: H.264;
• GPS & G-Sensor (optional)
• Support real-time and date display on video and time watermark;
• Loop recording: Automatic cyclical recording and repeat storage by sections;
• SOS button for file protection from overwriting;
• Built-in re-chargeable battery with car Charger;
• Recording automatically after the car powered-up;
• Support TF card up to 128GB(memory card is not included);
• 320 degree rotatable suction cup holder;
• Power supply from holder or USB port;

WDR (Wide Dynamic Range)

Record greater scene details in poor lighting conditions. Produce clearer, quick moving, action video even with back-light.

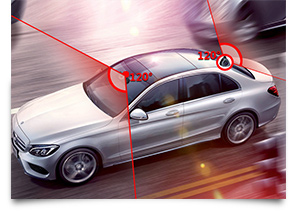

120° wide angle from front and rear, capture more details than single camera.

CPU Chipset Ambarella A7LA70

Sensor Sony IMX322 1/3-Inch CMOS Digital Image sensor(Both channels)

Lens
6 layers glass+1IR filter(Front camera len);

5 layers glass+1IR filter(Rearview camera len)

LCD screen 2.7 TFT

Functions OSD language customizable

Mic Yes

Speaker Yes

WDR Yes

G-sensor Optional

Camera Image Resolution 3M

Image Format JPEG

Video Resolution 1920*1080 30fps(Both channels)

1280*720 30fps(Both channels)

Video format MOV

Codec H.264

Videw angle 120 degrees(Diagonal per front & back)

Loop recording Yes

Device Button 7 buttons

Interface AV, HDMI, USB, Charging connector on holder

Card micro SD

Size (mm) Around 110*48*32mm(Main device)

Around 34.2*38.7mm(External camera)

Weight(g) Around 71.2g(Main device)

Around 20g(External camera)

Accessories Power adaptor Yes

Battery Built-in battery, 250mAh

USB cable Yes

AV cable Yes

Software OS Windows 2000/XP/Vista/Windows 7. MAC OS x 10.3.6 above

Driver Free driver

Giftbox:14.5*13.5*9.5cm
Qty: 20pcs/ctn
N.W.: 10.7kgs
G.W.: 11.5kgs
Size: 48.5*30*29 cm

CPU	Chipset	Ambarella A7LA70
	Sensor	Sony IMX322 1/3-Inch CMOS Digital Image sensor(Both channels)
	Lens	6 layers glass+1IR filter(Front camera len); 5 layers glass+1IR filter(Rearview camera len)
	LCD screen	2.7 TFT
Functions	OSD language	customizable
	Mic	Yes
	Speaker	Yes
	WDR	Yes
	G-sensor	Optional
Camera	Image Resolution	3M
	Image Format	JPEG
	Video Resolution	1920*1080 30fps(Both channels)
	Video Resolution	1280*720 30fps(Both channels)
	Video format	MOV
	Codec	H.264
	Videw angle	120 degrees(Diagonal per front & back)
	Loop recording	Yes
Device	Button	7 buttons
	Interface	AV, HDMI, USB, Charging connector on holder
	Card	micro SD
	Size (mm)	Around 1104832mm(Main device)
	Size (mm)	Around 34.2*38.7mm(External camera)
	Weight(g)	Around 71.2g(Main device)
	Weight(g)	Around 20g(External camera)
Accessories	Power adaptor	Yes
	Battery	Built-in battery, 250mAh
	USB cable	Yes
	AV cable	Yes
Software	OS	Windows 2000/XP/Vista/Windows 7. MAC OS x 10.3.6 above
Software	Driver	Free driver
