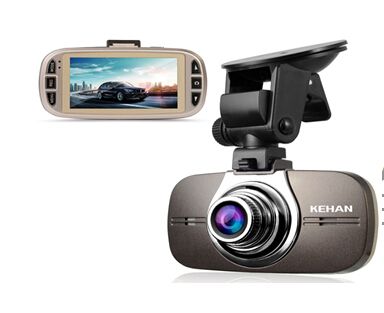

ESR822 (A7LA50+1296P)
Super HD 1296P 30FPS
Ambarella A7LA50
chip Super Wide Angle 170
Degree View Car DVR Recorder Vehicle Drive Recorder With G-Sensor
With GPS Logger
DetailSpecification formPacking info
Features:
• 2.7 inch high definition screen;
• 4.0MP CMOS image sensor: OV4689;
• Ambarella A7LA50;

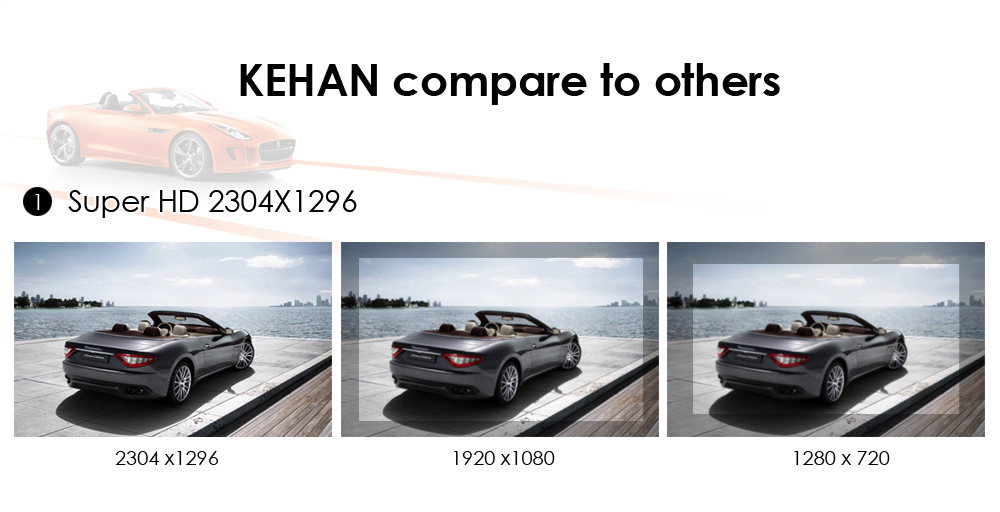

• Videos resolution:
HDR 1920*1080 30fps / 2560*1080 30fps / 2304*1296 30fps
1920*1080 45fps / 1920*1080 30fps / 1280*720 60fps

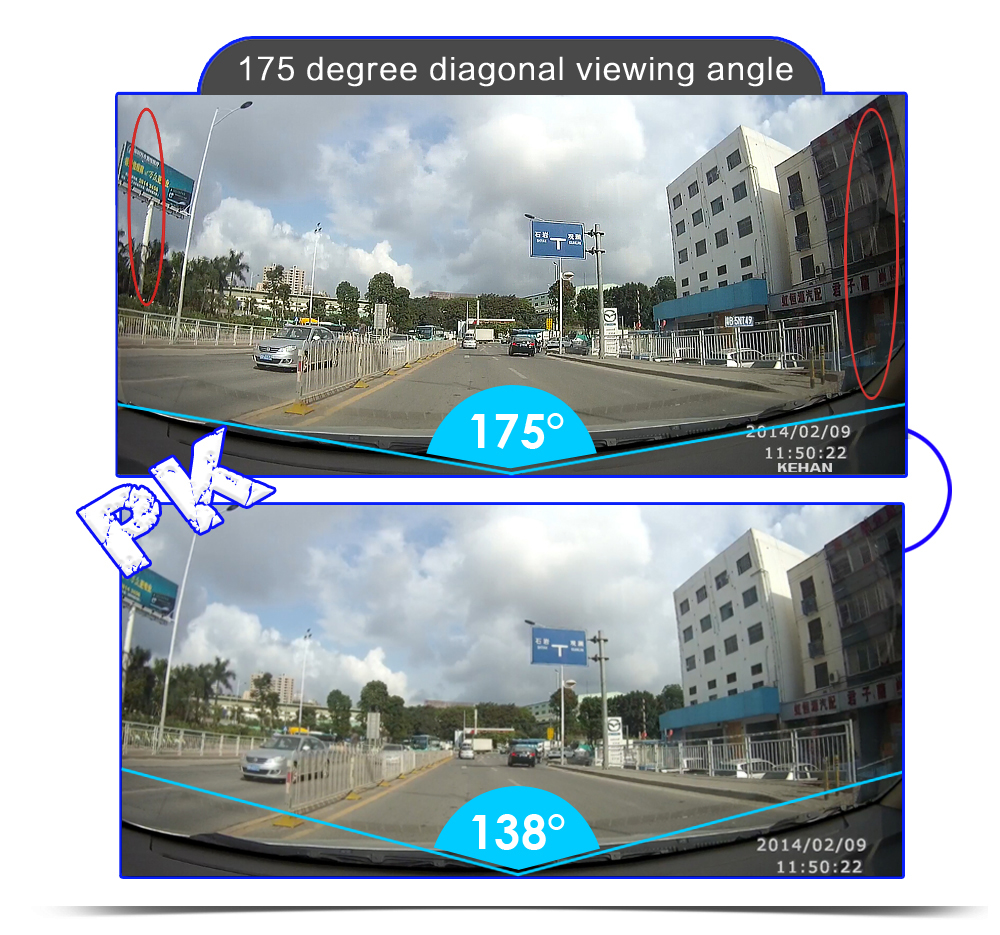

• 170 super wide degree;

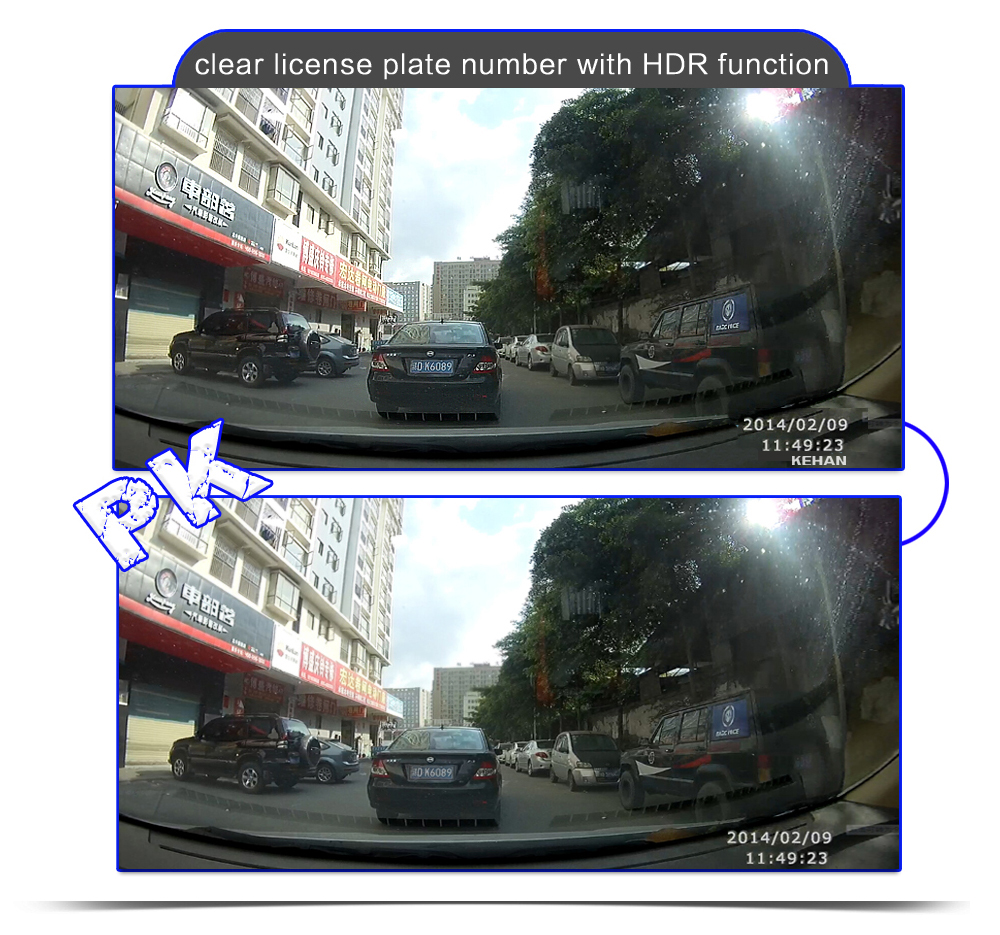

• With HDR:High Dynamic Range;

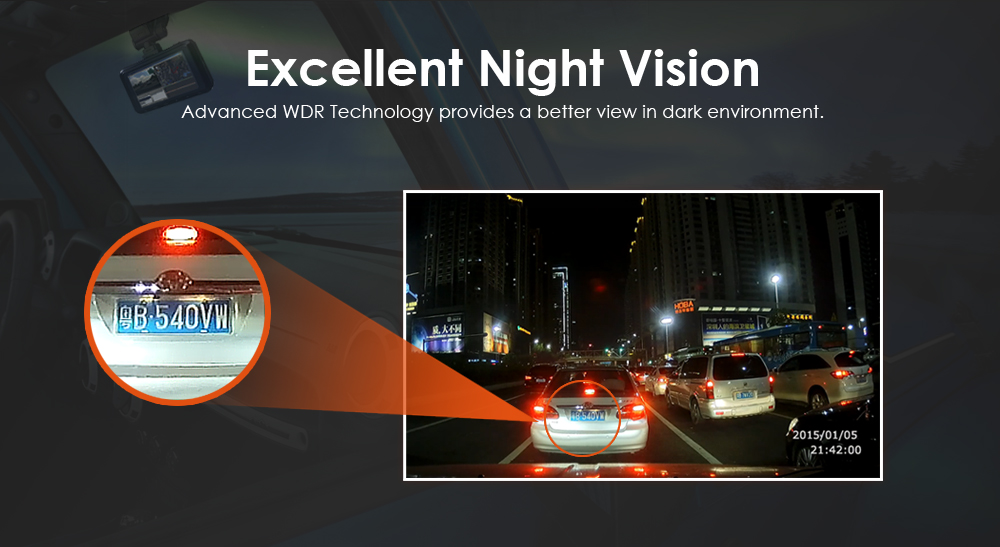

• With WDR:Wide Dynamic Range;
• With LDWS:Lane Departure Warning System;
• With FCWS:Front Collision Warning System (optional);
• With FCMD: Front Car Moving Detection (optional);
• With LLWS: Low Light Warning System;
• With Motion Detection;
• Video compression format: H.264;

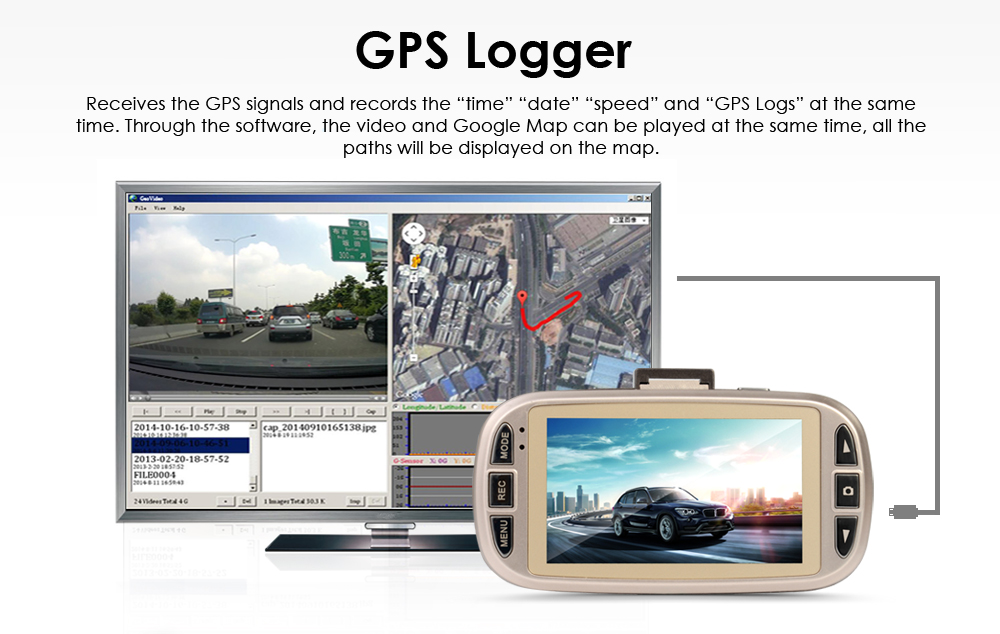

• GPS & G-Sensor (optional);
• Support real-time and date display on video and time watermark;
• Loop recording: Automatic cyclical recording and repeat storage by sections;
• SOS button for file protection from overwriting;
• Built-in re-chargeable battery with car Charger;
• Recording automatically after the car powered-up;
• Support TF card up to 128GB(memory card is not included);

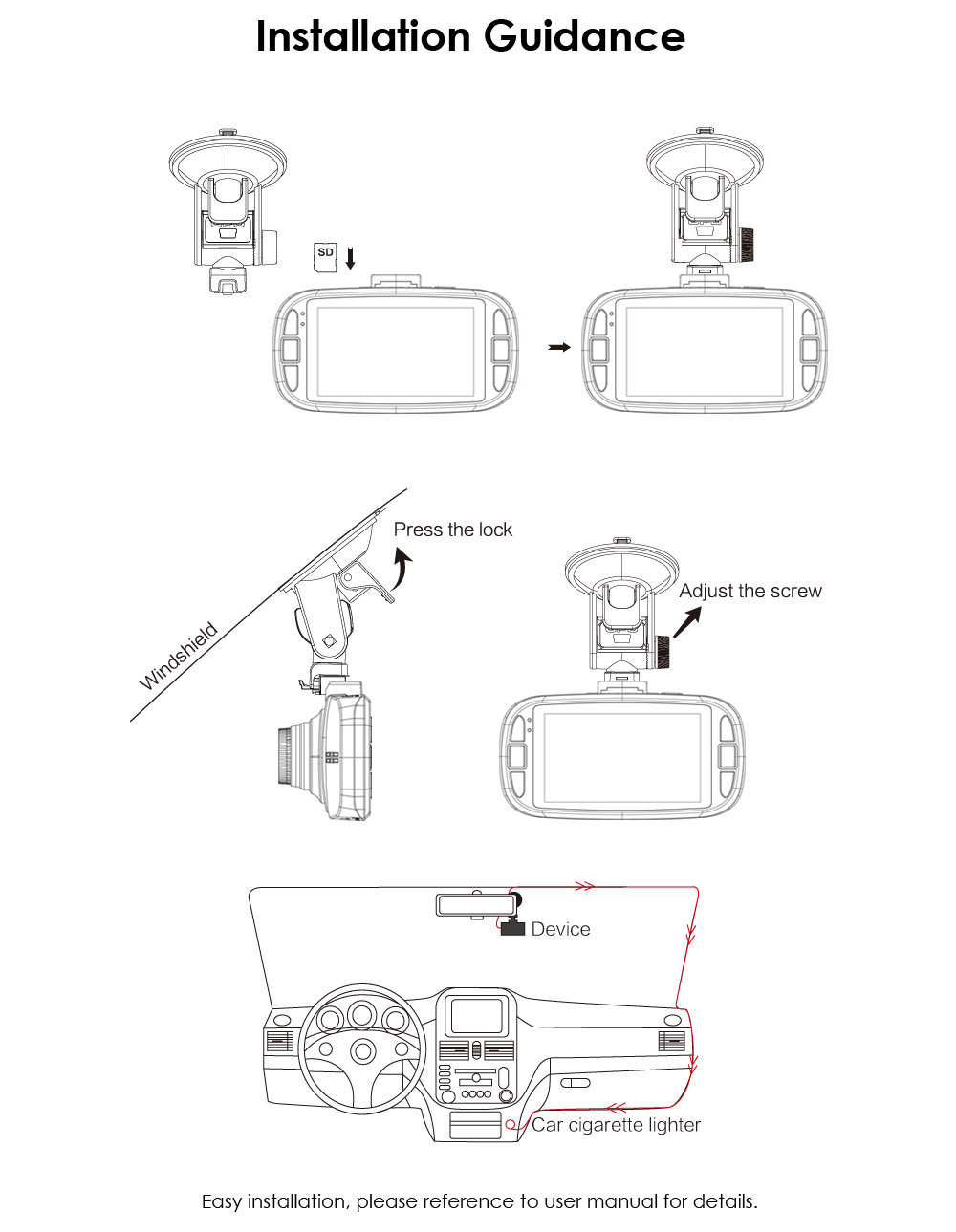

• 320 degree rotatable Suction cup holder;
• Power supply from holder or USB port;
-
|
CPU
|
Chipset
|
Ambarella A7LA50
|
|
Sensor
|
OV4689
|
|
LCD screen
|
2.7 TFT
|
|
Functions
|
OSD language
|
customizable
|
|
Mic
|
Yes
|
|
Speaker
|
Yes
|
|
WDR
|
Yes
|
|
HDR
|
Yes
|
|
LDWS
|
Yes
|
|
FCWS
|
Yes
|
|
GPS Logger
|
Optional
|
|
G-sensor
|
Optional
|
|
Camera
|
Image Resolution
|
4M
|
|
Image Format
|
JPEG
|
|
Video
|
Video resolution
|
HDR 1920*1080 30fps
|
|
2560*1080 30fps
|
|
2304*1296 30fps
|
|
1920*1080 45fps
|
|
1920*1080 30fps
|
|
1280*720 60fps
|
|
Video format
|
MOV
|
|
Codec
|
H.264
|
|
Videw angle
|
170 degrees(Diagonal)
|
|
Loop recording
|
Yes
|
|
Device
|

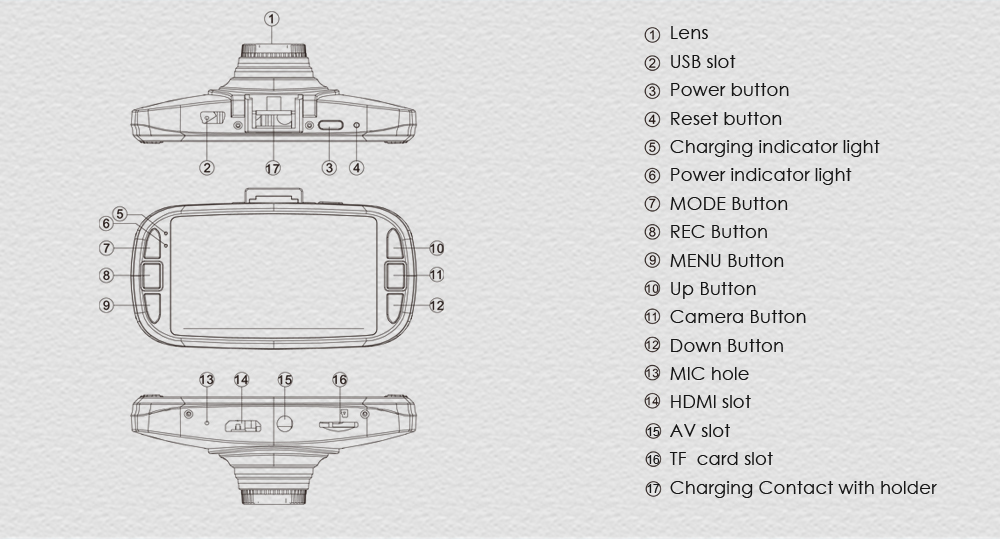

Button
|
7 buttons
|
|
Interface
|
AV, HDMI, USB, Charging connector on holder
|
|
Card
|
micro SD
|
|
Size (mm)
|
Around 97.15*53.1*33.3mm
|
|
Weight（g）
|
Around 66.5g
|
|
Accessories
|
Power adaptor
|
Yes
|
|
Battery
|
Built-in battery, 240mAh
|
|
USB cable
|
Yes
|
|
AV cable
|
Yes
|
|
Software
|
OS
|
Windows 2000/XP/Vista/Windows 7. MAC OS x 10.3.6 above
|
|
Driver
|
Free driver
|
Gift box: 14.2*11.5*8.0cm
Qty: 20pcs/ctn
N.W/G.W: 7.0/7.7kgs
Master carton: 41.5*30*25cm
